MC2

Distribution Amplifier and Format Converter for AES/EBU and AES/EBU ID

  • AES/EBU and AES/EBU ID interfaces in one box
  • Supports all audio-related clock rates between 32 kHz and 192 kHz
  • All interfaces meet the specifications of the according AES + AES ID standards
  • Signal improvement by low-jitter PLLs
  • Converting from AES3 to AES11
  • Detects and monitors all studio sampling rates between 32 kHz and 192 kHz
  • Reference pass functionality
  • Input lock detection
  • Simple user interface
  • Built-in international power supply

MC2 comes basically as an AES/EBU distribution amplifier. Additonally AES/EBU ID interfaces are available to offer conversions between both interface standards. Using latest PLL and conversion techniques, MC2 processes digital audio signals aligned to AES3 and AES3 ID and reference sync signals aligned to AES11 and AES11 ID including all usual clock rates from 32 kHz to 192 kHz. Each interface standard offers one input whereas AES/EBU can be distributed to 6 outputs and AES/EBU ID to 2 outputs.

Various operation modes enable the use of MC2 in a wide range of applications. An input reference signal will be distributed to all outputs simultaneously. In this process, a conversion between the AES/EBU and the AES/EBU ID interfaces will be done automatically.

A supplied AES3 digital audio signal can be converted in realtime into an AES11 digital sync signal and distributed through all outputs. To keep the original AES3 signal for further use, the first output of the according interface standard can be switched to pass the original signal separately without any format changes.

The voltage of the outputs of the AES/EBU ID interface can be switched from standard 1V to 3V to enable very long cable runs.

MC2 is mountable in a 19" rack system by using our optional rack adapters. All functions can be set convenient from the front panel with help of a simple user interface. The device is shipped in a rugged aluminium housing and meets CE, UL and FCC, part 15, specifications.


The Right Cables for MC2

PSC 75 BNC/BNC

The Right Cables for MC2 - PSC 75 BNC/BNC


The technical data will be added as soon as possible.
Please use our contact form to send us your inquiry if technical information are needed in the meantime.
Thank you.

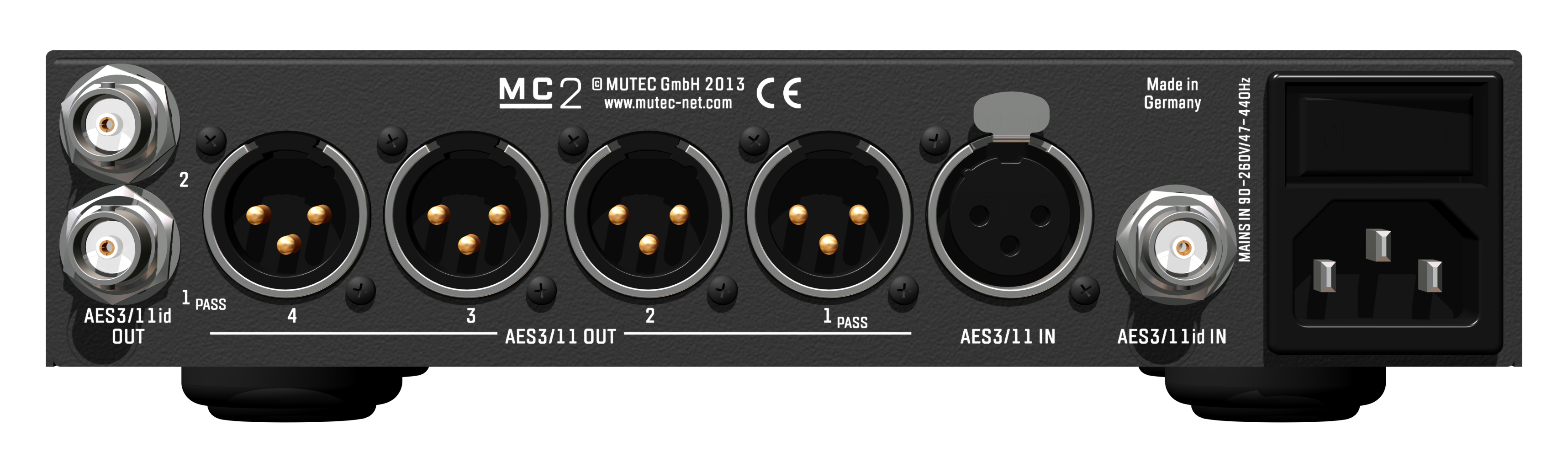

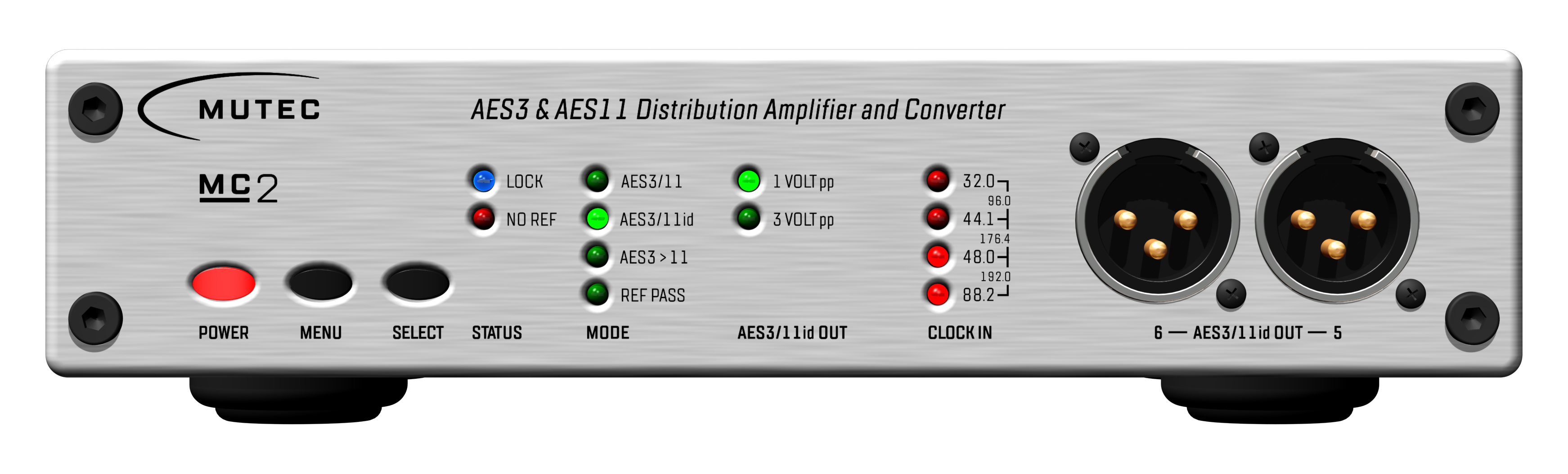

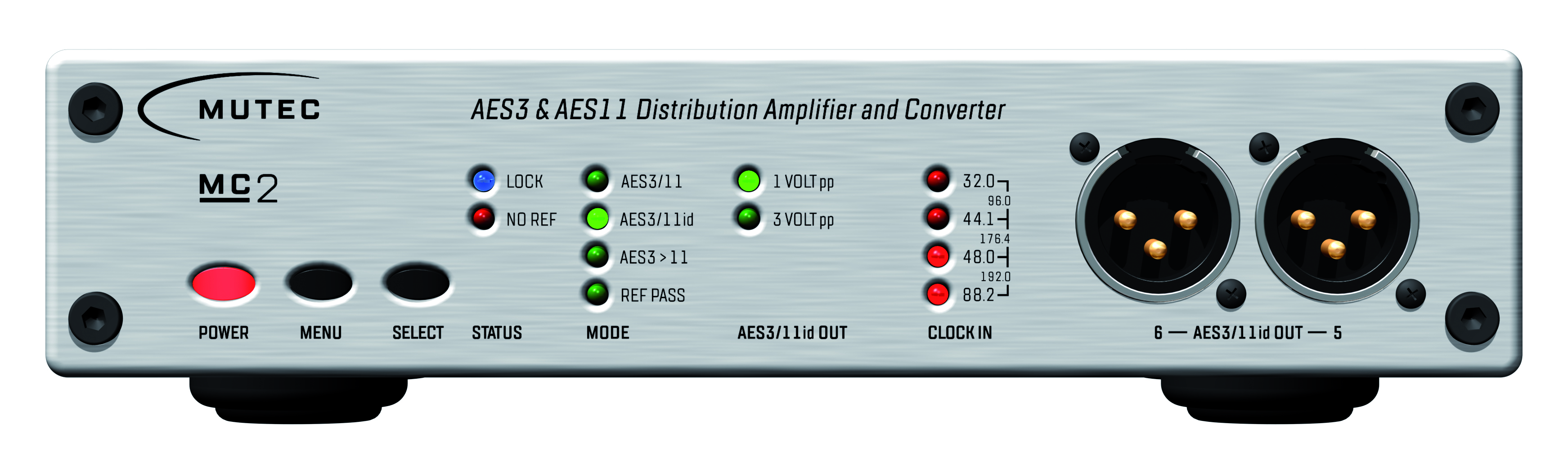

Logo Front View Rear View
CMYK CMYK  RGB CMYK  RGB

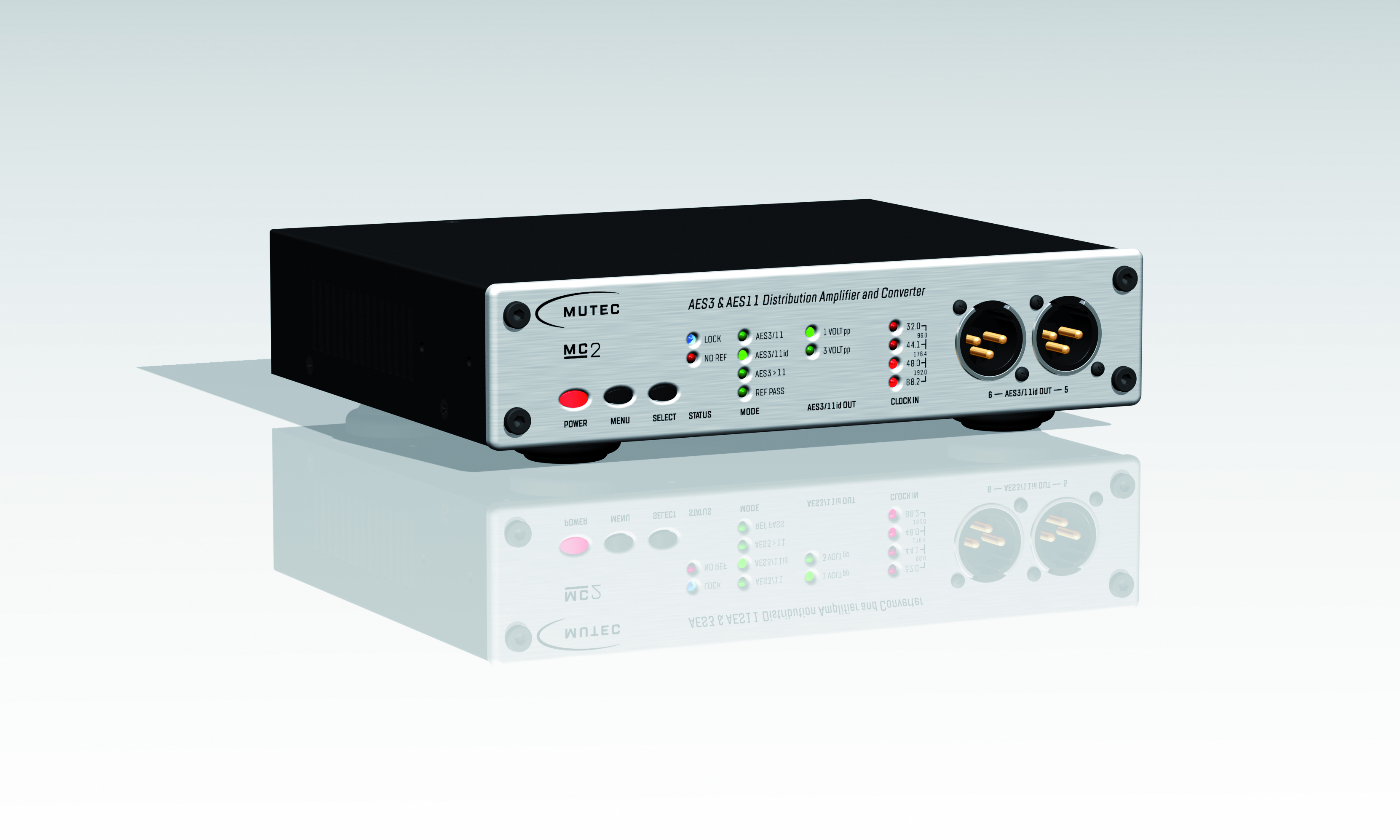

Single Perspective,
Front

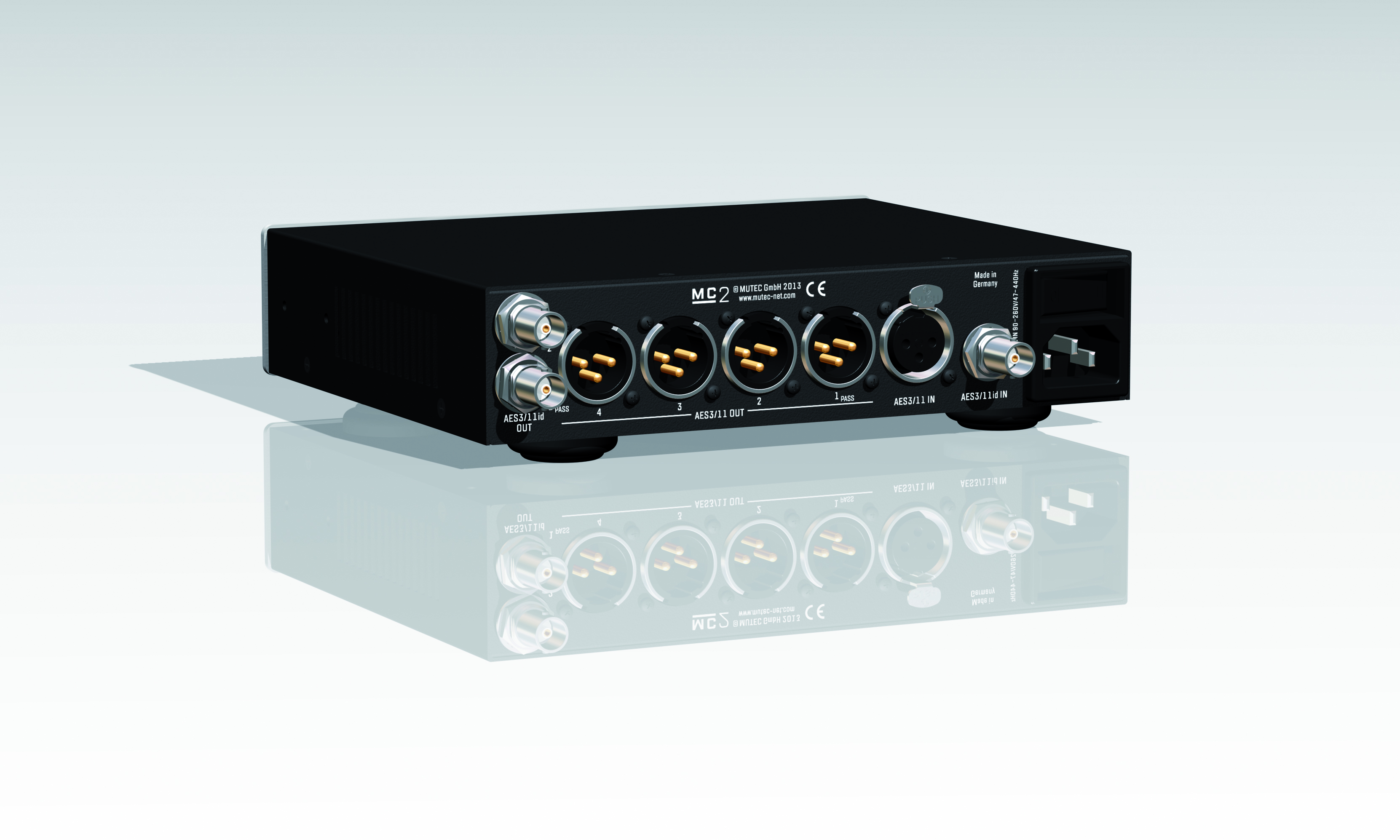

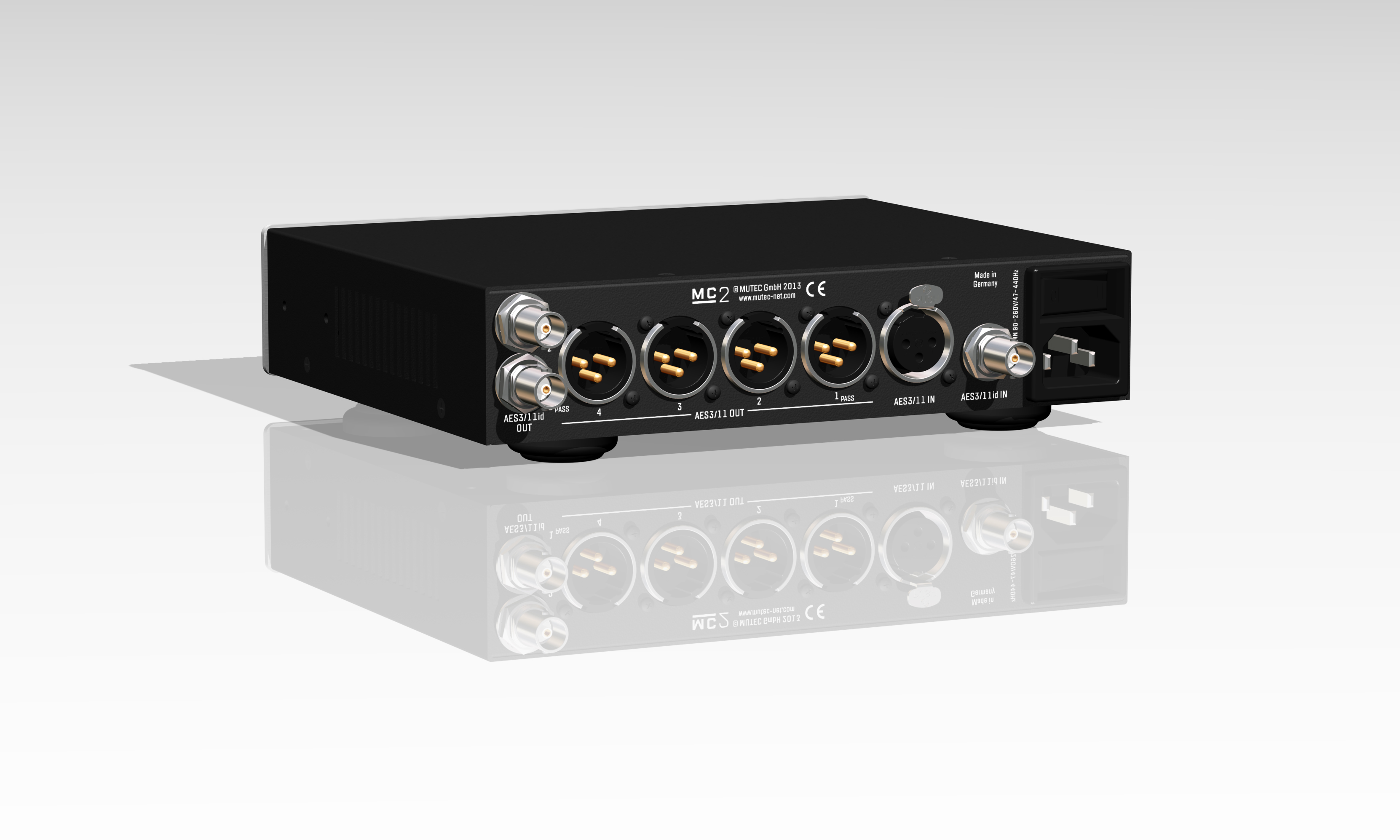

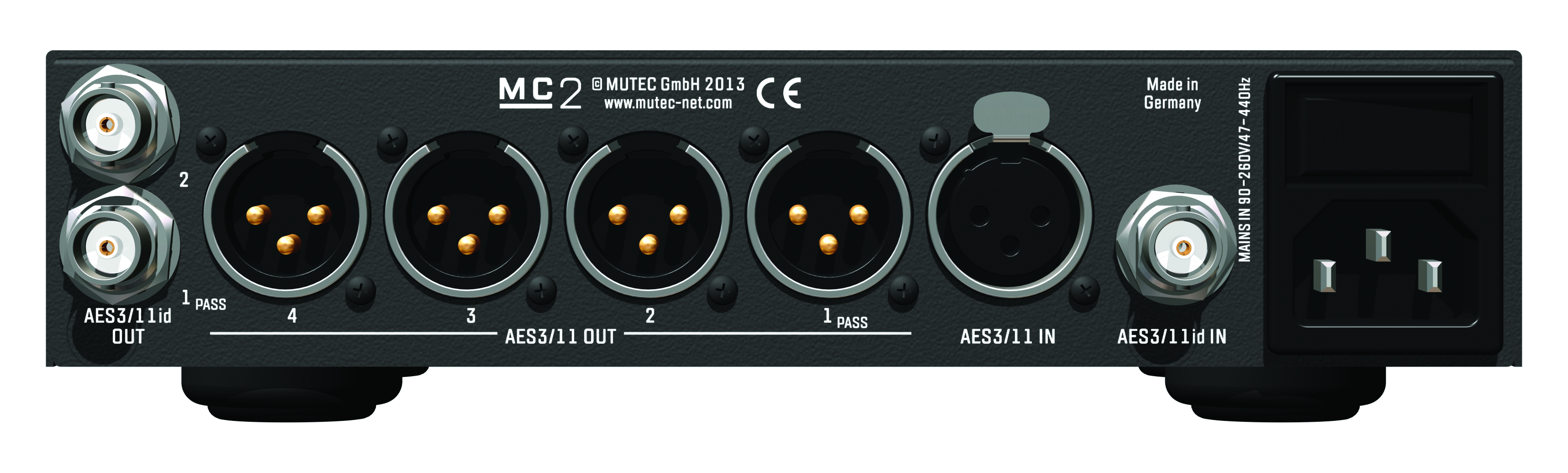

Single Perspective,
Back

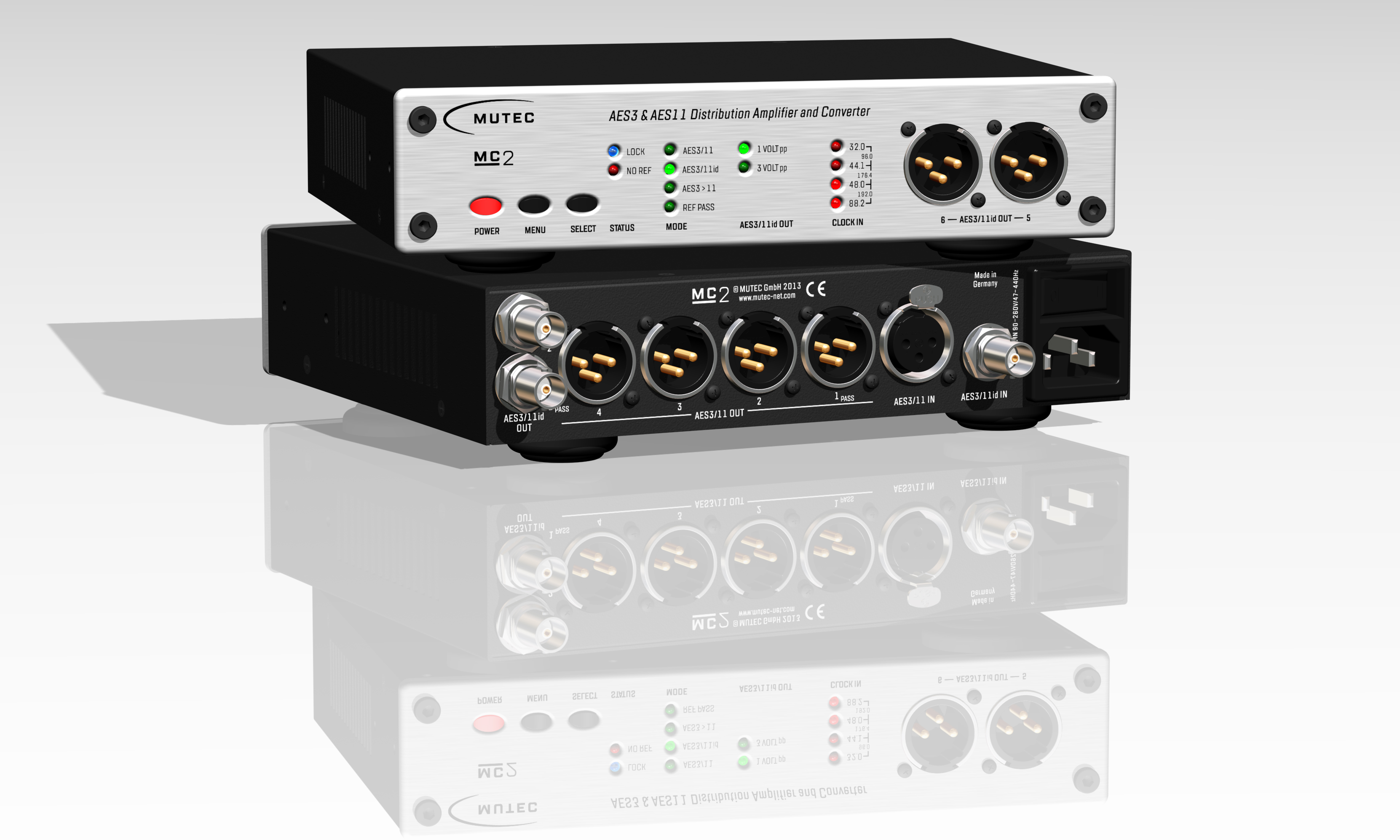

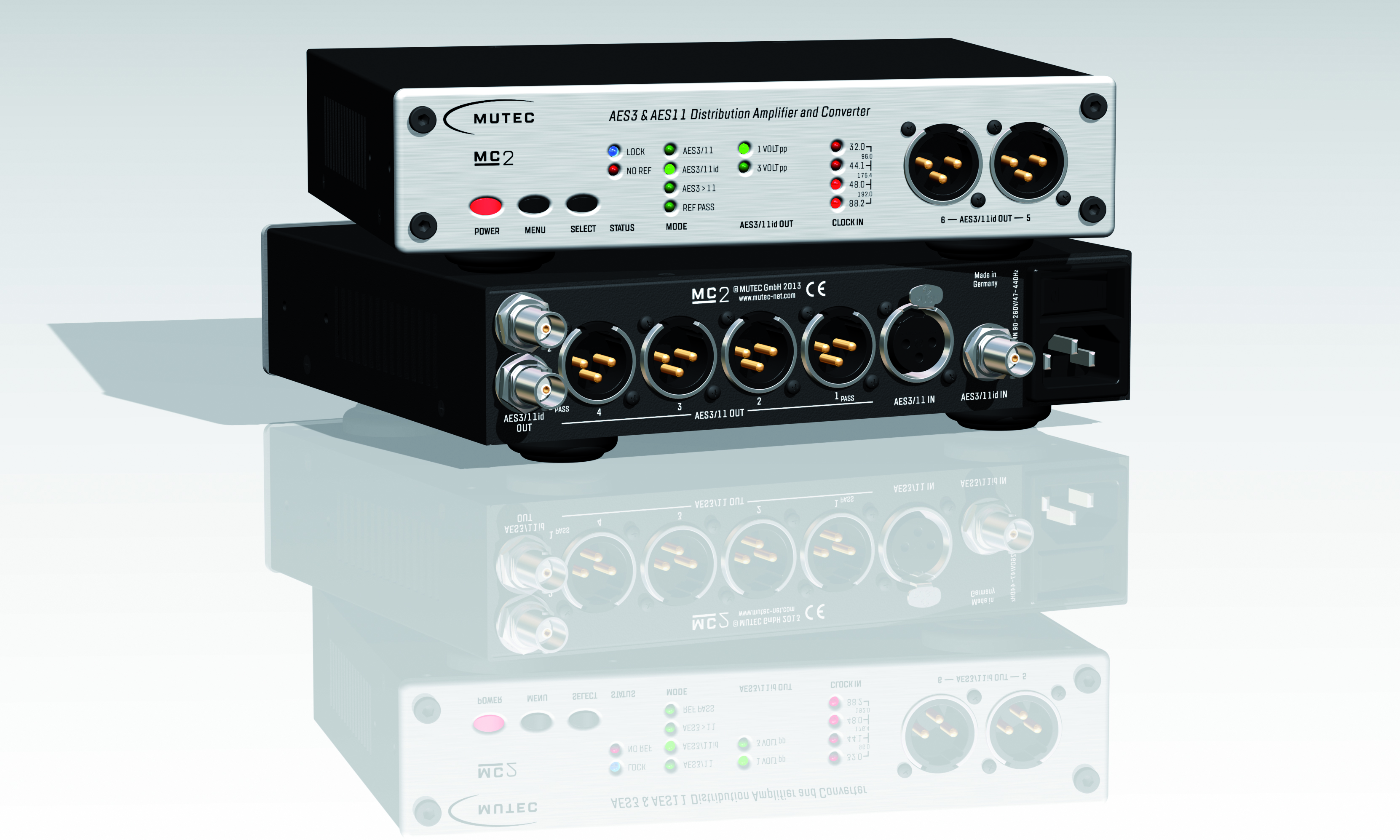

Double Perspective,
Front + Rear View
CMYK  RGB CMYK  RGB CMYK  RGB
MC-2 Manual
Product Manual

Subscribe Newsletter


Applications

  • AES/EBU and AES/EBU ID reference signal distribution
  • AES/EBU and AES/EBU ID digital audio signal distribution
  • Reference signal and digital audio signal refreshing
  • Signal conversion between AES/EBU and AES/EBU ID
  • AES3 to AES11 conversion
  • Clock rate indication of AES/EBU and AES/EBU ID signals
  • Line extension for e.g. theater or broadcast installations
  • Output expansion for e.g. MUTEC's iClock, iClockdp, iD, iDdp, MC3, MC3.1 and MC3.2 and other clock generators
